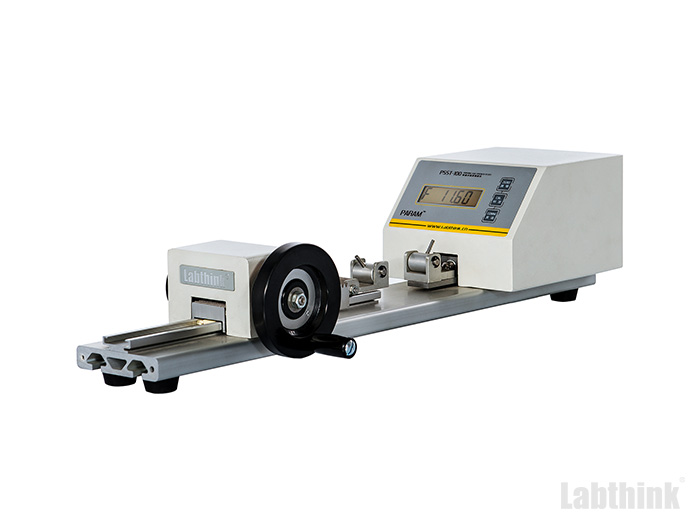

PSST-100 Portable Heat Seal Strength Tester is designed for heat seal strength test of plastic films, composite films and other materials. This instrument is suitable for on-site quantitative inspection.
Features
- The instrument is controlled by micro-computer with menu interface, PVC operation panel and large LCD display which is convenient for the user to review the testing data and results
- Professional software supports unit conversion, data query, probability statistics and normal distribution display
- Power cord and chargeable battery as power supplies
- Portable design for on-site inspection
- Equipped with RS232 port which is convenient for the data transmission
- Supports LystemTM Lab Data Sharing System for uniform and systematic data management
Standards
This instrument conforms to the national standard: QB/T 2358
Applications
| Basic Applications |
Plastic Films, Sheets, Composite Films
For heat seal strength tests of plastic films, sheets and composite films e.g. package for instant noodle, mill powder, washing powder as well as the external packages for food and drugs made of PE, PP, PET or composite films |
Technical Specifications
| Specifications | PSST-100 |
| Capacity Range | 0 ~ 100 N |
| Accuracy | 1% FS |
| Resolution | 0.01 N |
| Tensile Stroke | 100 mm |
| Power Supply | 220VAC 50Hz / 120VAC 60Hz |
| Instrument Dimension | 500 mm (L) x 165 mm (W) x 130 mm (H) |
| Net Weight | 3.5 kg |
Configurations
- Standard Configurations
- Instrument and Universal Sample Grips
- Optional Parts
- Professional Software and Communication Cable
Contact Us! We can help you select or customize the proper unit for your test requirements.
