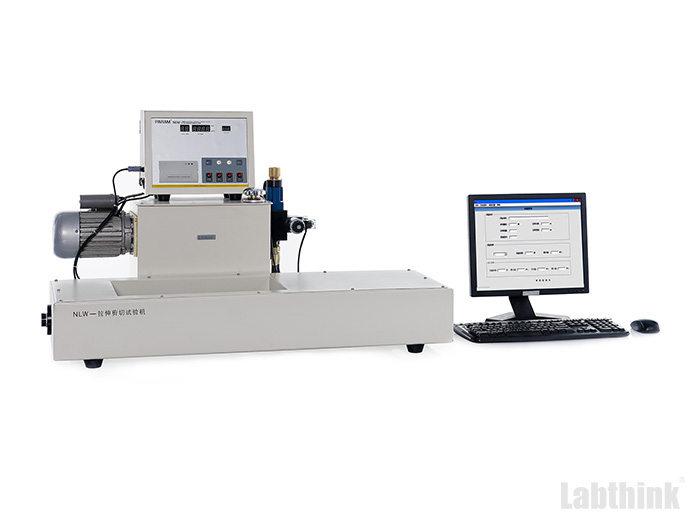

NLW-20 Adhesive Tensile & Shear Tester is professionally applicable to the determination of tensile, shearing and pulling properties of various adhesives.
Features
- The system is controlled by micro-computer, with digital display screen, and PVC operation panel, which is convenient for customers to view test data
- Exports test data in standard units and supports statistical analysis of group specimens
- Continuous variable speed regulating meets the requirements of different test conditions
- Equipped with micro-printer and standard RS232 port for convenient data transfer
- Supports LystemTM Lab Data Sharing System for uniform and systematic management of test results and test reports
Standards
This instrument conforms to various national standards as follows:
ISO 4587, GB/T 6329, GB 7124, GB/T 6328, ASTM D1002, ASTM D2095, ASTM D3165, ASTM D2339, JIS K6850, JIS K6849, HG4-852-854
Applications
This instrument is applicable to the determination of:
| Basic Applications |
| Test the tensile and shearing strength of various of adhesives |
| Test the compression and shearing strength of various of adhesives |
| Test the pull strength of various of adhesives |
Technical Specifications
| Specifications | NLW-20 |
| Load Cell Capacity | 20 KN |
| Accuracy | 1% FS |
| Resolution | 1 N |
| Speed | 5 mm/min ~ 50mm/min |
| Test Stroke | ≤150 mm |
| Environment Condition | Temperature: 10°C ~ 40°C
Humidity: 20%RH ~ 70%RH |
| Power Supply | 220VAC 50Hz |
| Instrument Dimension | 1090 mm (L) x 610 mm (W) x 640 mm (H) |
| Net Weight | 125 kg (including the weight of hydraulic oil) |
Configurations
- Standard Configurations
- Instrument, Control Device, Micro-printer, Hydraulic Power Unit, Grips for Shearing and Tensile Test
- Optional Parts
- Aluminum Alloy Shearing Test Plate, Stainless Steel Shearing Test Plate, Aluminum Alloy Tensile Test Stick, Clamp Grips and Compressed Shearing Grips
Contact Us! We can help you select or customize the proper unit for your test requirements.
