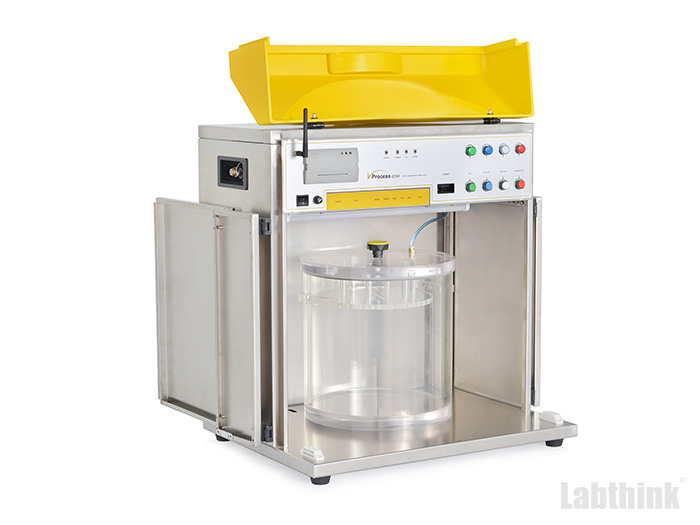

i-Process 6200 Leak Test and Data Processing System is professionally used for the on-site leakage test of packages used for food, pharmaceuticals, medical apparatus, daily chemicals, cars, electronic components, stationeries and many others. The instrument can also be used to test seal performance of specimens after falling and compression tests. Furthermore, i-Process 6200 supports DataShieldTM system for comprehensive online data management.
Product Features
Functionality
- Top quality parts and components made by world famous brands are used to ensure reliable overall product performance
- Specimens could be tested under the preset vacuum condition by automatic compensation of constant pressure
- Automatic test termination followed by gas back flushing can balance pressure between test chamber and outside in a short time
- Vacuum degree and vacuum retention time can be freely set in accordance with customer requirements
- Intelligent reminder for sensor calibration guarantees the safety of operation
- Professional software can conduct statistics for instrument usage rate and test frequency, test result evaluation, and thorough display of test data
- Dust or water proof structure makes it more suitable for on-site measurement
- Equipped with barcode scanner and micro printer which is convenient for data input and transfer
- The instrument utilizes embedded computer control system and supports DataShieldTM system to provide simplified and secure data management functions
Standards
This instrument conforms to national and international standards: ASTM D3078, GB/T 15171.
Applications
This instrument is used for leakage determination of the following items:
| Basic Applications |
| Glass Bottles, Tubes, Cans and Boxes |
| Plastic Bottles, Tubes, Cans and Boxes |
| Metal Cans, Tubes and Boxes |
| Pen Refills |
| Food Bags |
| Daily Chemicals |
| Pharmaceutical Packages |
| Medical Apparatus |
| Electronic Components |
Technical Specifications
| Items | Specifications |
| Vacuum Degree | 0 ~ -90 KPa |
| Accuracy | 1% FS |
| Vacuum Chamber Effective Sizes | Φ270 mm x 210 mm (H) (standard) |
| Note: customization is available for other sizes |
| Gas Supply Pressure | 0.7 MPa (outside of supply scope) |
| Port Size | Ф8 mm PU Tubing |
| Instrument Dimension | 600 mm (L) x 450 mm (W) x 600 mm (H) |
| Power Supply | 220VAC 50Hz / 120VAC 60Hz |
| Net Weight | 39 kg |
Configurations
- Standard Configurations
- Instrument, Professional Software, Micro-printer, Wireless Data Module, Pedal Switch, DataShieldTM System (Optional. Providing data management functions for i-Process series instruments. Multiple instruments can share one DataShieldTM system)
- Optional Parts
- High Gain Antenna
- Note
- 1. The gas supply port of this instrument is Φ8 mm PU tubing;
2. Customers will need to prepare for gas supply.
Contact Us! We can help you select or customize the proper unit for your test requirements.
