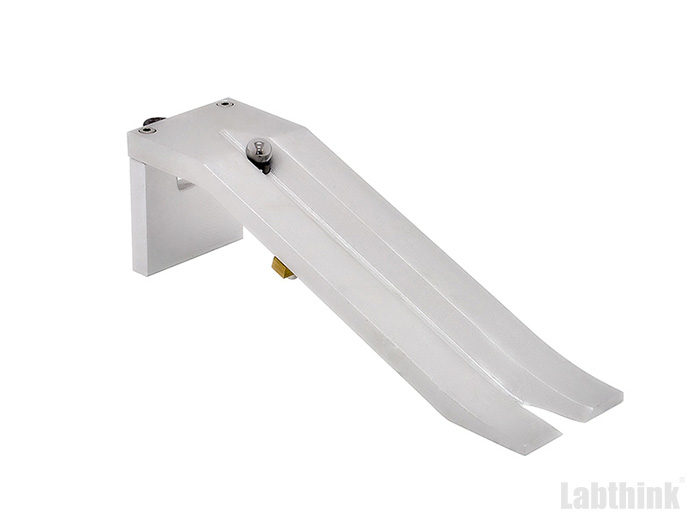

CZY-GC Primary Adhesive Tester (PSTC-6) is applicable to tack test of pressure-sensitive tapes and other similar pressure-sensitive adhesives.
Technical Specifications
| Specifications | CZY-GC |
| Test Angle | 21.5° |
| Standard Steel Ball | Ф11.112 mm (7/16″) |
| Instrument Dimension | 240 mm (L)×58 mm (W)×65 mm (H) |
| Net Weight | 0.5 kg |
Note 1: The parameters in the table are measured by professional operator in Labthink laboratory according to relative requirements for laboratory standard conditions.
Note 2: The described product features, test standards and applications should be in line with Technical Specifications.
Test Principle
In the determination of tack by rolling-ball method, a steel ball is released at the top of an inclined trough, the allowed to accelerate down and roll on to a horizontal surface covered with a pressure-sensitive adhesive. Tack is determined by measuring the distance that the steel ball travels across the adhesive before stopping.
Test Standards
GB/T 4825 (Method B: Inclined Trough Rolling Ball Method), PSTC-6, ASTM D3121
| Basic Applications | Applicable to tack test of pressure-sensitive tapes and similar pressure-sensitive adhesives with inclined trough rolling ball method |
The instrument is designed according to the inclined trough rolling ball method and can be used for tack determination of specimens The structure and steel balls of the instrument are designed according to national standards, which guarantees the accuracy of test data
