Features
- Based on the rolling ball method and test the instant adhesive property of specimens
- Testing steel balls are designed strictly according to national standards, which ensure the accuracy of test data
- Angle of inclination could be adjusted freely to meet customer test requirements
Principle
The instrument is designed based on the balling method, and the primary adhesive property of adhesive tapes could be obtained by observing adhesive effect occurred immediately after rolling ball and adhesive specimen come into contact.
Standards
This test instrument conforms to the standards: GB/T 4852, JIS Z0237
Applications

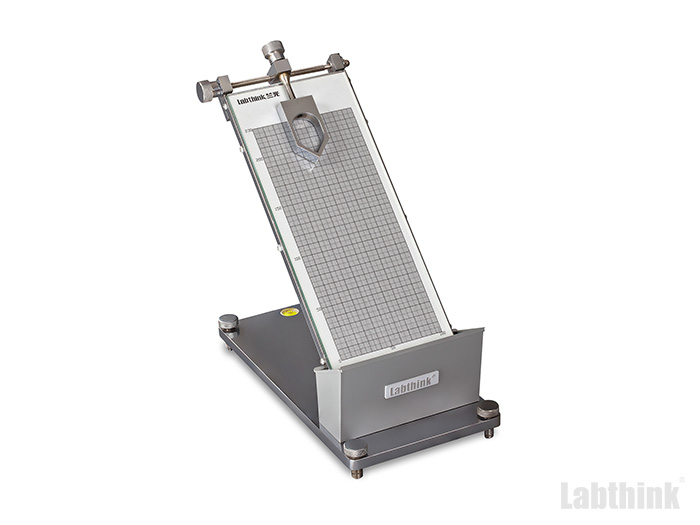

CZY-G Primary Adhesive Tester is professionally applicable to the determination of primary adhesive property of:
| Basic Applications |
|---|
Including various adhesives, e.g. pressure-sensitive tapes, medical patches, adhesive labels and protection films. |
Technical Specifications
| Specifications | CZY-G Primary Adhesive Tester |
|---|---|
| Angle Range | 0 ~ 60° |
| Panel Width | 120 mm |
| Testable Area Width | 80 mm |
| Standard Steel Ball | 1/32 inch ~ 1 inch |
| Instrument Dimension | 320 mm (L) x 140 mm (W) x 180 mm (H) |
| Net Weight | 6 kg |
