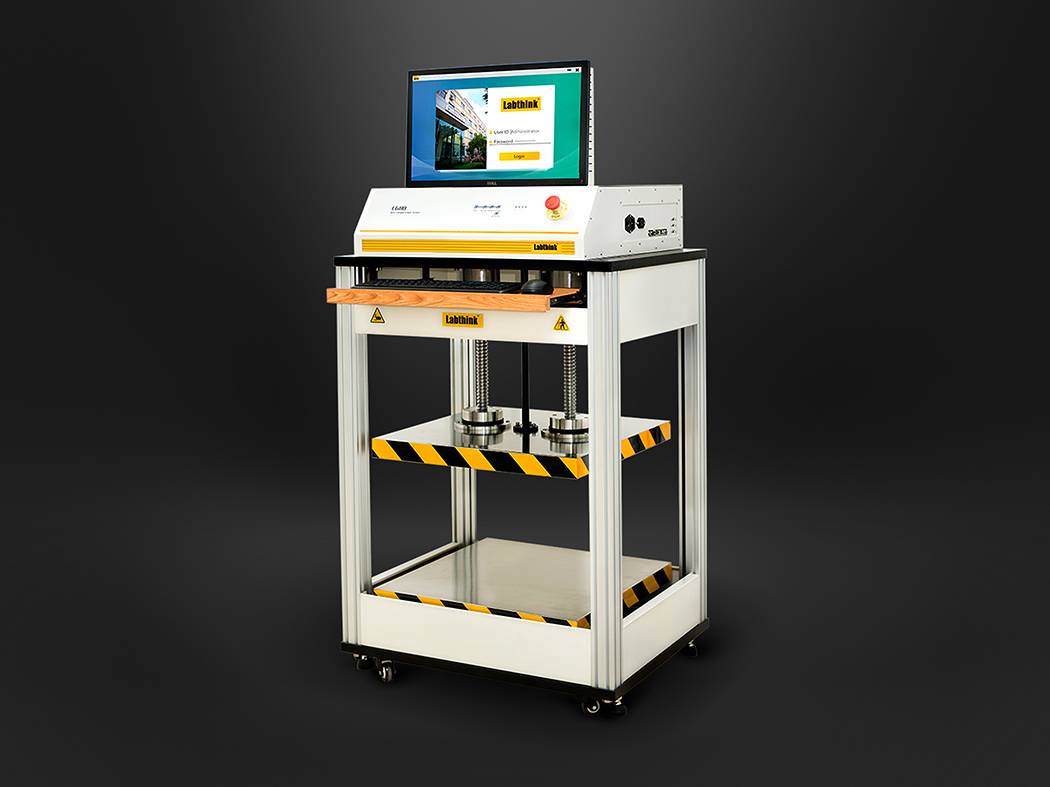

C611B Box Compression Tester can be used to measure the compressive resistance, deformation and stacking capability of cartons, beehive crates, plastic tanks, paper tanks, paper cases, IBC tanks and other packages. The instrument supports online laboratory information and data management.
Product FeaturesNote1
- Compact and integrated design and wide range power supply meet the testing requirements of various applications
- Supports crushing force test, stacking test A and stacking test B
- Dynamic digital display of test force, deformation and other test data
- High performance motor and dual precision ball screws support free adjustment of test speed
- Overload protection, maximum stroke protection and error alert for safe test operation
- High end embedded computer-controlled system integrates the instrument with software, requires no external computer
- Labthink’s unique data security design improves the reliability of data management and test operation
- Windows-like interfaces, keyboard and mouse, which are easy to use
- USB ports and net port for data transmission
- The instrument conforms to the requirements of GMP (optional)
- Labthink’s unique DataShiledTM System for data management and connecting with information system (optional)
Test StandardNote1
ASTM D642, ASTM D4169, TAPPI T804, ISO 12048, JIS Z0212, GB/T 16491, GB/T 4857.4, QB/T 1048-2004
ApplicationsNote1
| Basic Applications |
Crushing Force Test of Cartons
Crushing force test of corrugated cartons and honeycomb boxes |
Stacking A Test of Cartons
Measuring the deformation of corrugated cartons and honeycomb boxes during stacking process |
Stacking B Test of Cartons
Determining whether the deformation of corrugated cartons and honeycomb boxes is qualified when specified force is applied for a certain period |
| Extended Applications |
Crushing Force Test of Hollow Containers
Crushing force test of hollow containers |
Stacking A Test of Hollow Containers
Measuring the deformation of hollow containers during stacking process |
Stacking B Test of Hollow Containers
Determining whether the deformation of hollow containers is qualified when specified force is applied for a certain period |
Technical SpecificationsNote2
| Specifications | C611B Box Compression Tester |
| Load Cell Capacity | 9 KN (3 pcs) |
| Accuracy | Indicated Value ±1% (10% ~ 100% of load cell capacity)
±0.1% FS (0% ~ 10% of load cell capacity) |
| Force Resolution | 1 N |
| Deformation Resolution | 0.1 mm |
| Test Speed | 0 ~ 200mm/min (Any integer within the specified range) |
| Speed Accuracy | Indicated Value ±2% |
| Stroke | 450 mm |
| Specimen Height | 0 ~ 600 mm |
| Test Space | 0.6 m (L) × 0.6 m (W) × 0.61 m (H) |
| Instrument Dimension | 0.65 m (L) × 0.81 m (W) × 1.62 m (H) |
| Power Supply | AC220V±10% 50Hz / AC120V±10% 60Hz |
| Net Weight | 180 kg |
Configurations
- Standard Configurations
- Instrument, Monitor, Mouse, Keyboard, Printer (Inkjet), 150mm Plate (1pcs)
- Optional Parts
- Auxiliary Metering Device, GMP System, DataShieldTM Note3
Note 1: The described test standard, applications and product features should be in line with Technical Specifications.
Note 2: The parameters in the table are measured by professional operators in Labthink laboratory under strictly controlled laboratory conditions.
Note 3: DataShieldTM provides safe and reliable data application support. Multiple Labthink instruments can share one single DataShieldTM system which can be configured as required.
Contact Us! We can help you select or customize the proper unit for your test requirements.
